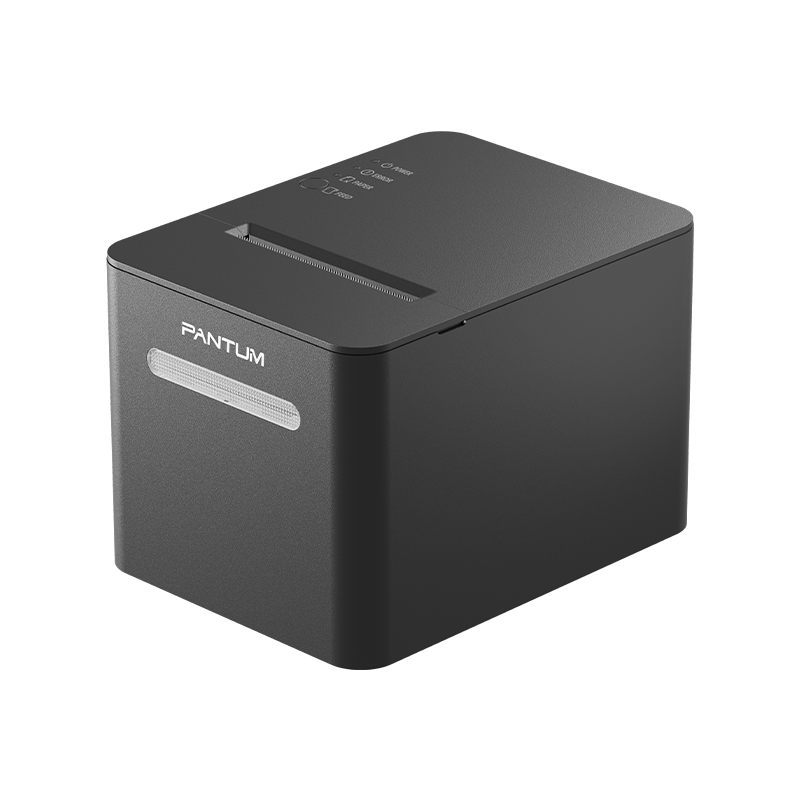

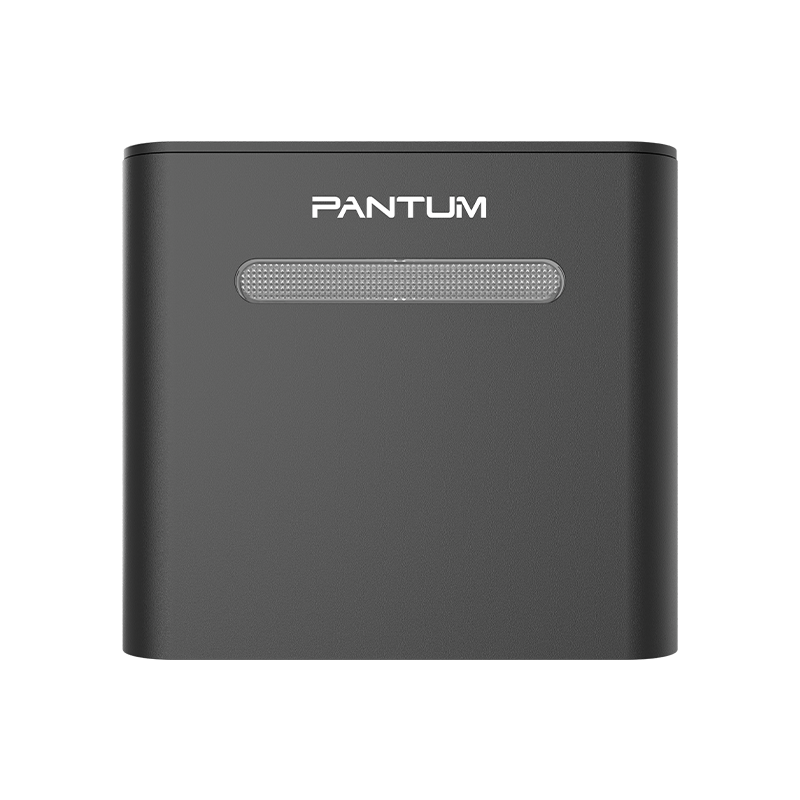

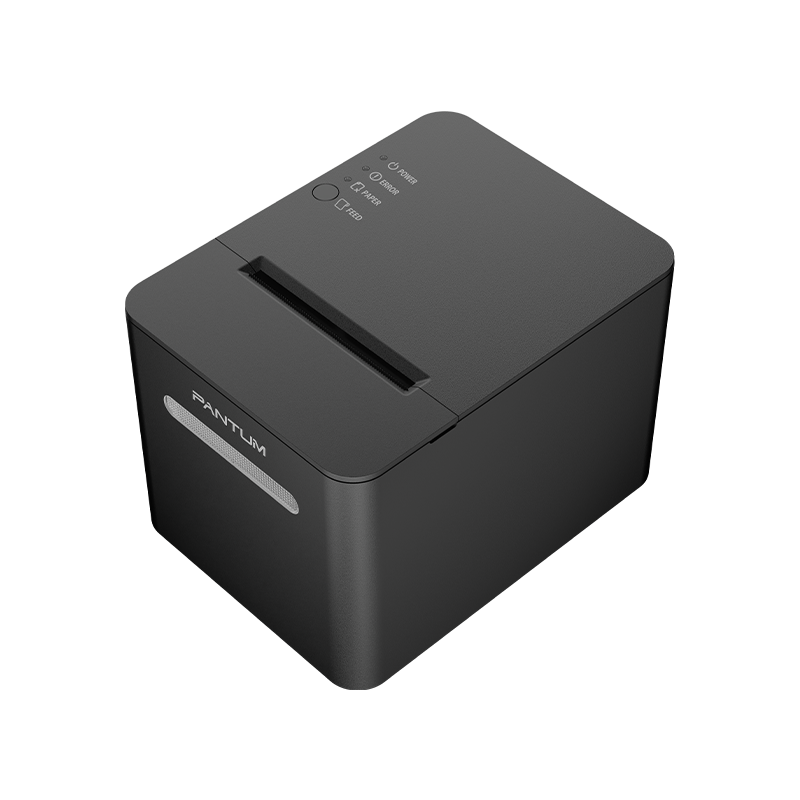

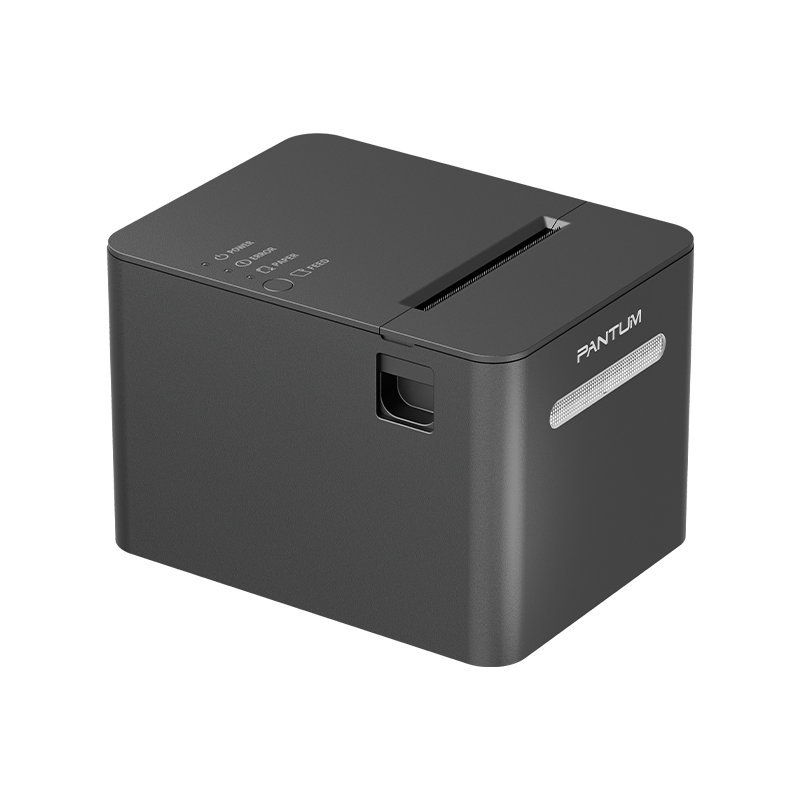

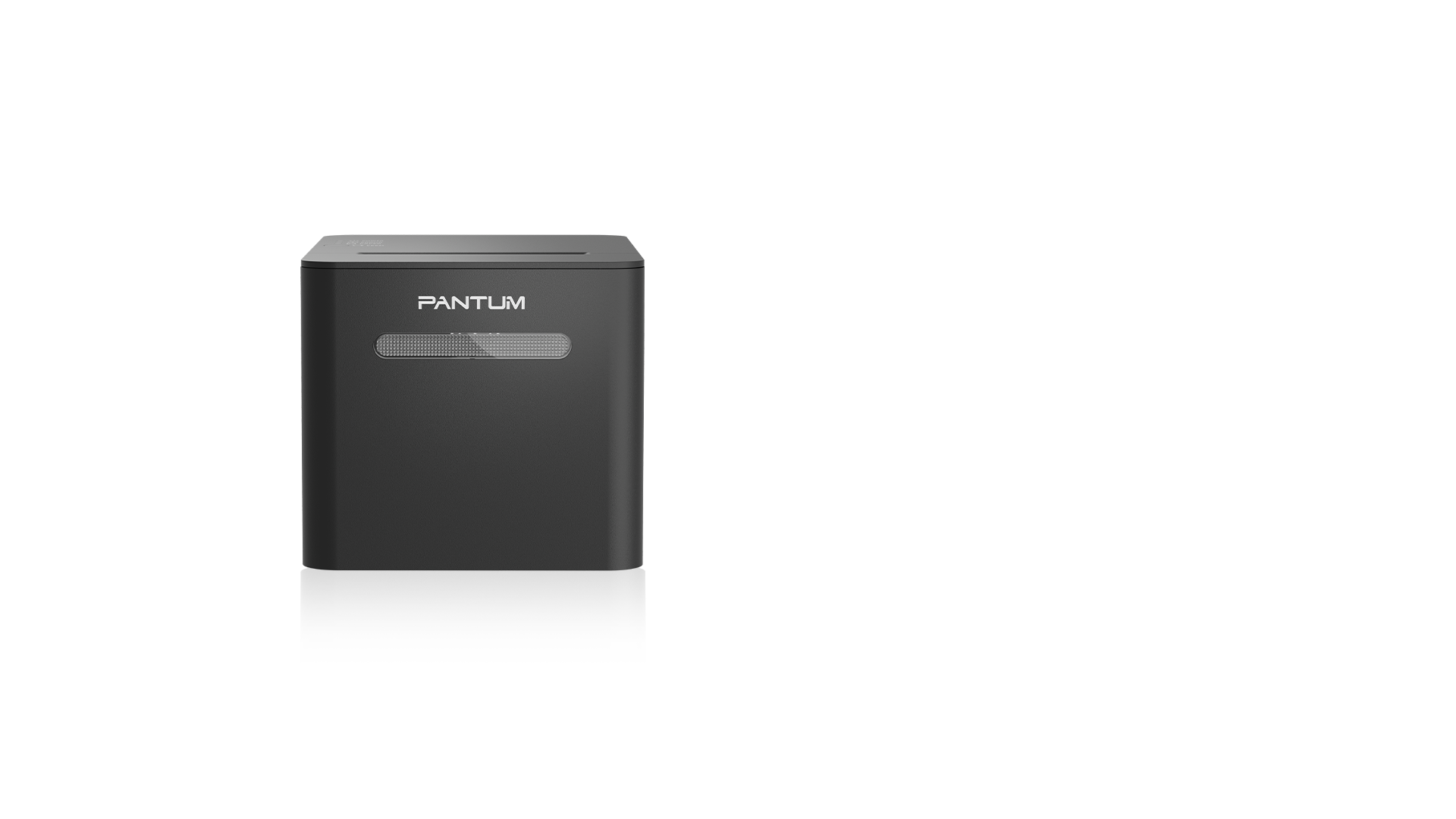

PD-80 Desktop Thermal Receipt Printer

Printing interface：USB
Printing speed：250mm/s(max)
Printing method：Direct thermal
Printing width：72mm(max)
Special function：
IP54-rated waterproof and dustproof design
Audible-visual alarm (*Available for alarm-enabled models)
Wall-mountable design to save space
Effortless high-volume paper management
Brochure（Click to download）
Other Product：

Select a product

PD-80ABEW PD-80BW PD-80E

FEATURES DETAILS CONSUMABLES

PD-80

Blast Through Challenges with Unyielding Resilience

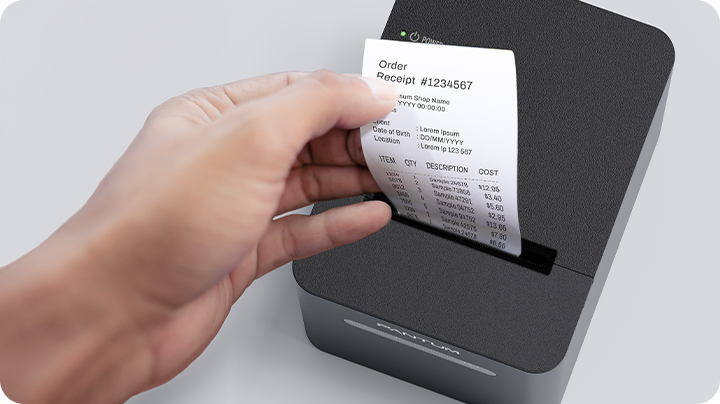

Silent Speed with Smart Temp Control

Print at 250mm/s with near-silent operation for a quiet workspace, backed by intelligent temperature management that prevents overheating during extended print jobs—ensuring fast, consistent, and durable performance.

IP54-Rated Resilience

Rated IP54, this printer stands up to the harshest conditions in kitchens, warehouses, and beyond.

: Durable Automatic Cutter

Our robust automatic cutter can handle up to 1.5 million cuts, meaning fewer replacements and more worry-free operation.

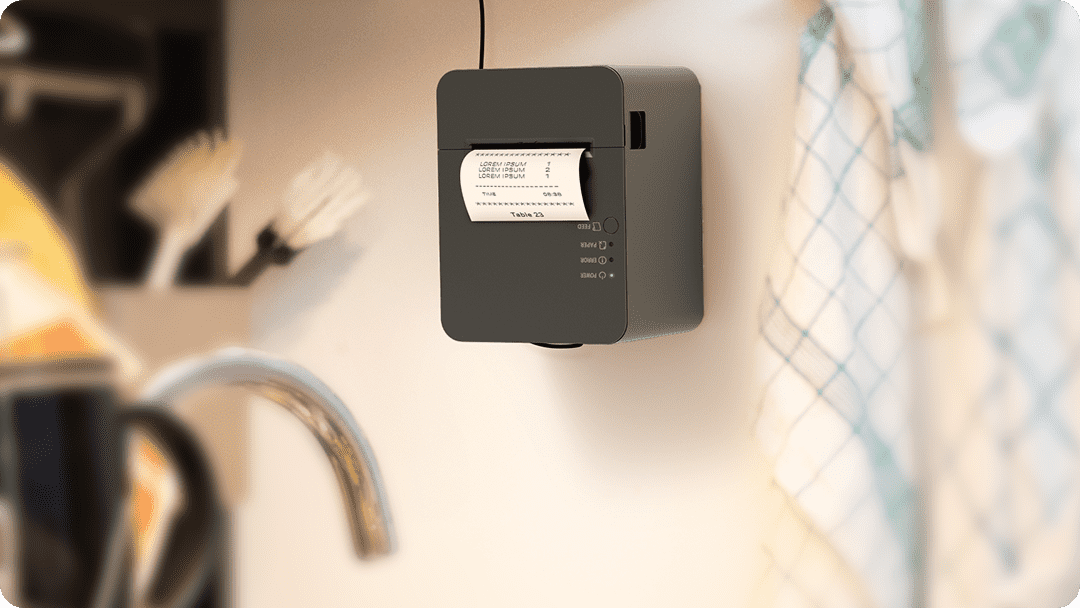

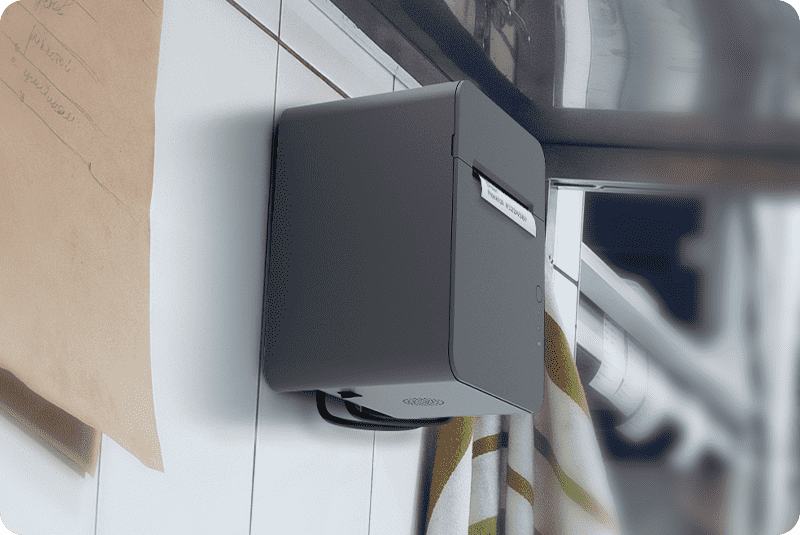

: Wall-Mountable Space-Saver

The wall-mountable design is perfect for tight spots—small offices, retail counters, or anywhere space is at a premium.

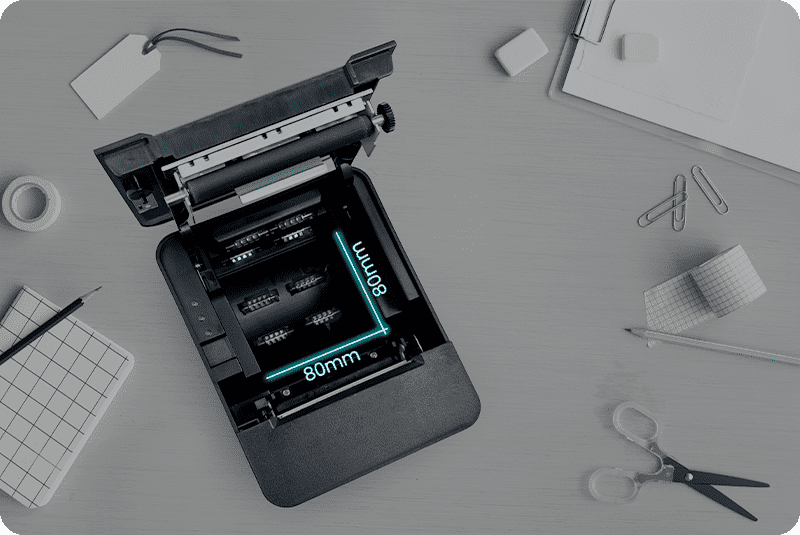

Effortless High-Volume Paper Management

Power through big jobs with an extra-large container that fits 58mm and 80mm labels, cutting reloads for non-stop printing. Four built-in roller pairs enable quick, hassle-free paper changes—maximizing efficiency at every step.

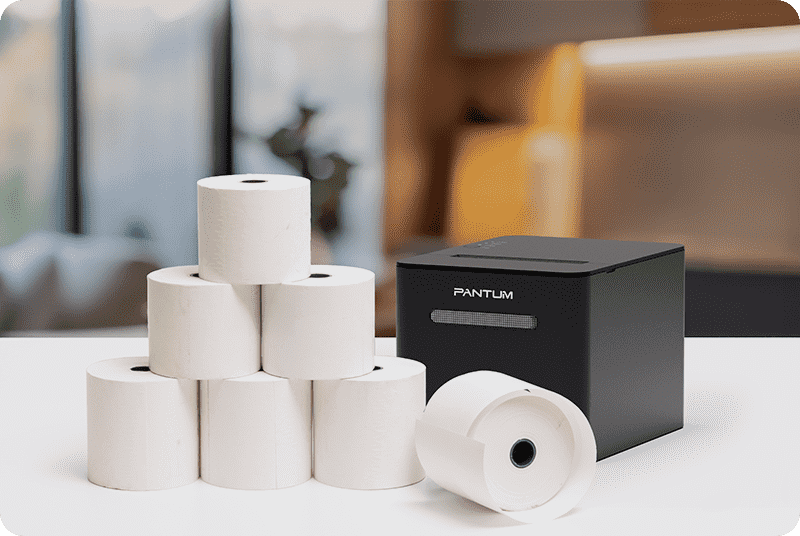

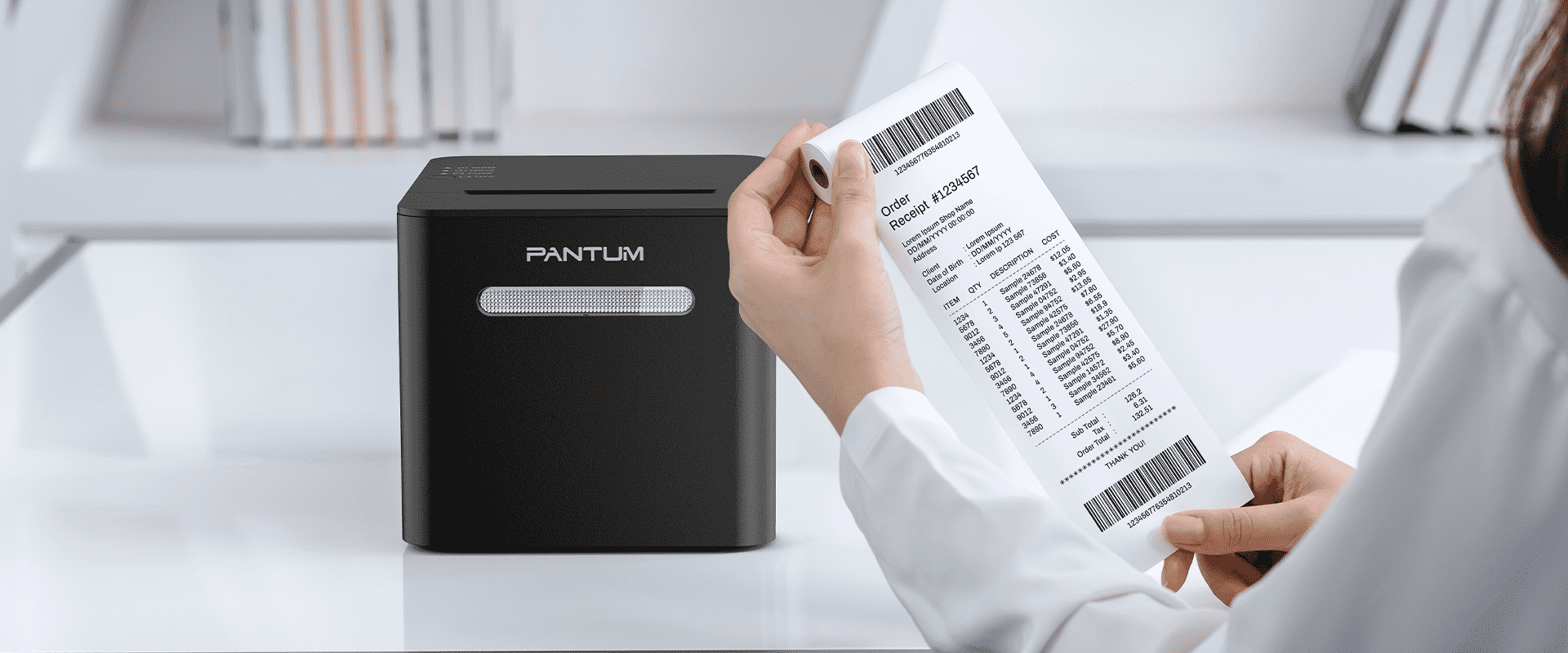

: Trustworthy Thermal Receipt Expert

Designed exclusively for thermal receipt paper in varying sizes, our printer is trusted across every industry—from bustling restaurant kitchens, retail counters, and cafes to delivery hubs, cinemas, hospitals, and pharmacies—for its reliable, high-speed performance.

Product Specifications

Product

PD-80

GENERAL

Resolution	203DPI
Printing Method	Direct Thermal
Interface	USB
Emulation	ESC/POS
Sensor	Open cover sensor/missing Paper sensor/Paper detection sensor
Alarm	NO

Print Speed	250mm/s（max）
Printing Width	72mm（max）
Bar code Format	Code128、EAN128、ITF、Code39、Code93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CodeBar、Postnet、UPC-A、UPC-A+2、UPC-A+5、UPC-E、UPC-E+2、UPC-E+5、MSI、MSIC、PLESSEY、CPOST、ITF14、EAN14、Code11
Two-dimensional code Format	QR code、PDF417、Micro PDF 417、DataMatrix、AZTEC
Character Enlargement/rotation	1-10x magnification /0°, 90°, 180°, 270° rotation/mirror printing
Character	GB18030、BIG5、ASCII
Extended Character	PC437、Katakana、PC850、PC860、PC863、PC865、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866、PC852、PC858、IranII、Latvian、Arabic、PT151、PC747、WPC1257
Character Size	9x17dot, 12x24dot, 24x24dot

MEDIA

Paper Type	Thermal receipt paper
Roll Width (including backing Paper)	79.5mm±0.5mm
Roll Thickness (including backing Paper)	0.06~0.08mm
Roll outside diameter	80mm（OD）
FEED	Feed sheet

MEMORY

SDRAM	RAM 224KB
FLASH	FLASH 8MB（expandable）

POWER & ENVIRONMENT

Power	Input Power Supply: AC100 〜240V 50/60Hz Output Power: DC 24V~1.5A
Working Environment	Operating Temperature: 5~40°C Operating Humidity: 25~85%
Storage Environment	Storage Temperature: -10~60℃ Storage Humidity: 10~90%

PHYSICAL

Print Head Life	150km(Print rate 18.5%)
Cutter Life	1.5 million times
Dimension	180 * 135 * 125 mm
Weight	930g

ACCESSORIES

Accessories (standard)

1.Power cord
2.USB cable
3.Quick installation Guide
4.Thermal receipt paper
5.paper roll baffle
